"Classic" Series - Permanently available

download

"Classics" Katalog - ältere Produkte auf Dauer lieferbar

D-CLASSICS-2013-SCREEN.pdf

zipper "Classic" e-chain® - Quick assembly with zip fastener

Zipper

Outside zip-open

inner height hi: 17 mm
inner width Bi: 15 - 50 mm
bend radius R: 38 - 180 mm
pitch: 30.5 mm

Series 15

Closed type

E2 mini classic

inner height hi: 18 mm
inner width Bi: 15 - 50 mm
bend radius R: 28 - 180 mm
pitch: 30.5 mm

Can be opened on the outside on one side

B15 mini

inner height hi: 17 mm
inner width Bi: 15 - 50 mm
bend radius R: 38 - 180 mm
pitch: 30.5 mm

E2 medium "Classic" - Please use the E2/000 series for new designs

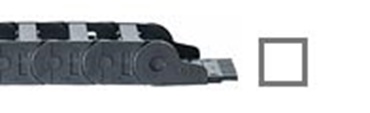

Closed design

Closed design

E2 medium 2

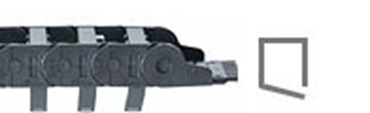

Can be opened on one side

crossbar can be opened inside

E2 medium 3

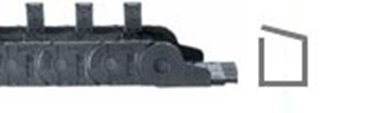

Can be opened on one side

crossbar can be opened from the outside

Closed type


  • Series 200, inner height hi: 25 mm, inner width Bi: 25 - 125 mm, bend radius R: 55 - 250 mm, pitch: 46 mm
  • Series 26, inner height hi: 35 mm, inner width Bi: 50 - 200 mm, bend radius R: 63 - 250 mm, pitch: 56 mm
  • Series 20, inner height hi: 25 mm, inner width Bi: 11 - 103 mm, bend radius R: 55 - 250 mm, pitch: 46 mm
  • Series 30, inner height hi: 45 mm, inner width Bi: 75 - 175 mm, bend radius R: 75 - 300 mm, pitch: 67 mm

    • Can be opened on one side, crossbar can be opened from the inside


  • Series 240, inner height hi: 25 mm, inner width Bi: 25 - 125 mm, bend radius R: 55 - 250 mm, pitch: 46 mm
  • Series 27i, inner height hi: 35 mm, inner width Bi: 50 - 200 mm, bend radius R: 63 - 250 mm, pitch: 56 mm
  • Series 340, inner height hi: 45 mm, inner width Bi: 50 - 250 mm, bend radius R: 75 - 300 mm, pitch: 67 mm
  • Series 36, inner height hi: 45 mm, inner width Bi: 75 - 175 mm, bend radius R: 75 - 300 mm, pitch: 67 mm

    • Can be opened on one side, crossbar can be opened from the outside


  • Series 250, inner height hi: 25 mm, inner width Bi: 25 - 125 mm, bend radius R: 55 - 250 mm, pitch: 46 mm
  • Series 27, inner height hi: 35 mm, inner width Bi: 50 - 200 mm, bend radius R: 63 - 250 mm, pitch: 56 mm
  • Series 350, inner height hi: 45 mm, inner width Bi: 50 - 250 mm, bend radius R: 75 - 300 mm, pitch: 67 mm
  • Series 25, inner height hi: 25 mm, inner width Bi: 11 - 103 mm, bend radius R: 55 - 250 mm, pitch: 46 mm
  • Series 35, inner height hi: 45 mm, inner width Bi: 75 - 175 mm, bend radius R: 75 - 300 mm, pitch: 67 mm

    • E2 R "Classic" - Two-piece e-tube - Chip protection - Very smooth running

    E2 R

    Open on the outside

    Two-part e-tube

    inner height hi: 35 mm
    inner width Bi: 50 - 75 mm
    bend radius R: 75 - 250 mm
    pitch: 33.3 mm

    Series R58 old

    Two-part e-tube

    inner height hi: 45 mm
    inner width Bi: 75 - 175 mm
    bend radius R: 100 - 300 mm
    pitch: 36 mm

    Series R68 old

    E4/light "Classic" - Discontinued series - Please use the E4/light series for new designs

    E4 light

    Full-width, can be opened on both sides

    E3 light 2

    Half-webbed, can be opened on both sides

    E4 light 3

    Swivelling lid

    e-tube, can be opened on both sides

    Full-width, can be opened on both sides


  • Series 140, inner height hi: 56 mm, inner width Bi: 50 - 600 mm, bend radius R: 135 - 500 mm, pitch: 91 mm
  • Series 142, inner height hi: 62 mm, inner width Bi: 50 - 400 mm, bend radius R: 135 - 500 mm, pitch: 91 mm
  • Series 150, inner height hi: 80 mm, inner width Bi: 50 - 600 mm, bend radius R: 150 - 500 mm, pitch: 91 mm

    • Half-webbed, can be opened on both sides


  • Series 141, inner height hi: 56 mm, inner width Bi: 50 - 600 mm, bend radius R: 135 - 500 mm, pitch: 91 mm
  • Series 143, inner height hi: 62 mm, inner width Bi: 50 - 400 mm, bend radius R: 135 - 500 mm, pitch: 91 mm
  • Series 151, inner height hi: 80 mm, inner width Bi: 50 - 600 mm, bend radius R: 150 - 500 mm, pitch: 91 mm

    • e-tube, can be opened on both sides, swivelling lid


  • Series R188, inner height hi: 56 mm, inner width Bi: 75 - 462 mm, bend radius R: 150 - 500 mm, pitch: 91 mm
  • Series R198, inner height hi: 80 mm, inner width Bi: 75 - 462 mm, bend radius R: 200 - 500 mm, pitch: 91 mm

    • E4/0 "Classic" - Discontinued series - Please use series E4.1 for new designs

    E4/0

    Full-width, can be opened on both sides

    E4/0

    Half-webbed, can be opened on both sides

    E4/0

    Swivelling lid

    e-tube, can be opened on both sides

    Full-width, can be opened on both sides


  • Series 22, inner height hi: 28 mm, inner width Bi: 40 - 300 mm, bend radius R: 55 - 250 mm, pitch: 46 mm
  • Series 28, inner height hi: 32 mm, inner width Bi: 50 - 400 mm, bend radius R: 63 - 300 mm, pitch: 56 mm
  • Series 38, inner height hi: 42 mm, inner width Bi: 50 - 400 mm, bend radius R: 75 - 350 mm, pitch: 67 mm
  • Series 40, inner height hi: 56 mm, inner width Bi: 50 - 600 mm, bend radius R: 135 - 500 mm, pitch: 91 mm
  • Series 50, inner height hi: 80 mm, inner width Bi: 50 - 600 mm, bend radius R: 150 - 1000 mm, pitch: 91 mm

    • Half-webbed, can be opened on both sides


  • Series 23, inner height hi: 28 mm, inner width Bi: 40 - 300 mm, bend radius R: 55 - 250 mm, pitch: 46 mm
  • Series 29, inner height hi: 32 mm, inner width Bi: 50 - 400 mm, bend radius R: 63 - 300 mm, pitch: 56 mm
  • Series 39, inner height hi: 42 mm, inner width Bi: 50 - 400 mm, bend radius R: 75 - 350 mm, pitch: 67 mm
  • Series 41, inner height hi: 56 mm, inner width Bi: 50 - 600 mm, bend radius R: 135 - 500 mm, pitch: 91 mm
  • Series 51, inner height hi: 80 mm, inner width Bi: 50 - 600 mm, bend radius R: 150 - 1000 mm, pitch: 91 mm

    • e-tube, can be opened on both sides, swivelling lid


  • Series R76, inner height hi: 28 mm, inner width Bi: 50 - 300 mm, bend radius R: 75 - 250 mm, pitch: 46 mm
  • Series R77, inner height hi: 32 mm, inner width Bi: 50 - 300 mm, bend radius R: 125 - 300 mm, pitch: 56 mm
  • Series R78, inner height hi: 42 mm, inner width Bi: 50 - 300 mm, bend radius R: 125 - 350 mm, pitch: 67 mm
  • Series R88, inner height hi: 56 mm, inner width Bi: 75 - 462 mm, bend radius R: 150 - 500 mm, pitch: 91 mm
  • Series R98, inner height hi: 80 mm, inner width Bi: 75 - 462 mm, bend radius R: 200 - 1000 mm, pitch: 91 mm

    • E-band

    e-band

    To be filled in the outer radius

    inner height hi: 25.5 mm
    inner width Bi: 25.5 mm
    bend radius R: 45 - 200 mm
    pitch: 25 mm

    Series e-band (PDF file)

    autoglide system:

    autoglide

    Version 2 - For Series 200 e-chain®

    Moulded autoglideteeth in inner radius
    inner height hi: 25 mm
    inner width Bi: 57 mm
    bend radius R: 100 mm
    pitch: 45 mm

    Series AG200
