Connectors

With plug-in connectors, igus® relies on companies that have proven that they can provide the necessary product quality and reliability. From the product range of Intercontec, Harting and Yamaichi, igus® offers industrial plug-in connectors that fulfil demanding requirements.
For industrial applications, the following connector types can be found in the shop:

  • Signal round connector
  • Plug-in connector
  • Combined signal and plug-in connector
  • Connector with plastic or metal clamping ring
  • Protection housing for especially demanding environments
  • Overmoulded plug-in connectors
  • M12 and M23 plug-in connectors

Due to order peaks, the delivery time for single items is 10-15 working days longer than stated. Please refer to our order confirmation for the specific delivery date. For urgent, short-term requirements, please contact us personally so that we can realise the delivery time necessary for you. You will find your contact person at the top of the menu under "My contact person", next to the language/country selection, or on this page.

Number of products: 156

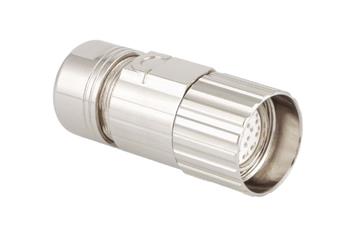

Standard connector, series A, M23 signal plugs

  • Material: Zinc die-casting/brass, nickel-plated
  • Pollution degree: 3
  • Protection class: IP 66/67 [plugged]
  • Over-voltage category: III
  • Temperature range: -20 °C to +130 °C
  • Union nut/screw: Brass, nickel-plated
  • Clamping ring material: Brass, nickel-plated
  • Contacts: Brass, gold-plated
  • Seal: FPM/HNBR
  • Insulation body: PA 6.6/PBT, UL 94/V0
  • Contact type: Female crimp
  • Plug design: Signal connector
389,13 ZAR/Pc.
5 items, thereof ready for shipping:
5 in 4 - 7 working days
To the product page

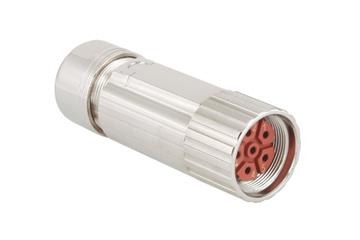

Standard connector series B, M23 power connector

  • Material: Zinc die-casting/brass, nickel-plated
  • Pollution degree: 3
  • Protection class: IP 66/67 [plugged]
  • Over-voltage category: III
  • Temperature range: -20 °C to +130 °C
  • Union nut/screw: Brass, nickel-plated
  • Clamping ring material: Brass, nickel-plated
  • Contacts: Brass, gold-plated
  • Seal: FPM/HNBR
  • Insulation body: PA 6.6/PBT, UL 94/V0
  • Contact type: HC crimp bush
736,18 ZAR/Pc.
3 items, thereof ready for shipping:
3 in 4 - 7 working days
To the product page

Standard connector, series B, M23 standard feed-through with coupling nut

  • Material: Zinc die-casting/brass, nickel-plated
  • Pollution degree: 3
  • Protection class: IP 66/67 [plugged]
  • Over-voltage category: III
  • Temperature range: -20 °C to +130 °C
  • Union nut/screw: Brass, nickel-plated
  • Clamping ring material: Brass, nickel-plated
  • Contacts: Brass, gold-plated
  • Seal: FPM/HNBR
  • Insulation body: PA 6.6/PBT, UL 94/V0
  • Contact type: HC crimp bush
1 077,18 ZAR/Pc.
3 items, thereof ready for shipping:
3 in 4 - 7 working days
To the product page

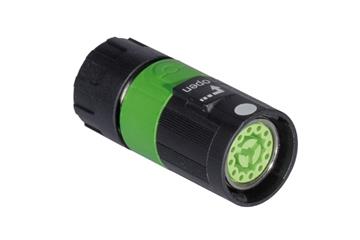

Series 615 signal connector, 12-pole with plastic clamping ring

  • Material: Zinc die-casting,/brass, nickel-plated and plastic coated
  • Pollution degree: 3
  • Protection class: IP 66/67 [plugged]
  • Over-voltage category: III
  • Temperature range: -20 °C to +130 °C
  • Union nut/screw: PA modif., 30% Gf.
  • Clamping ring material: Brass, nickel-plated / PA modif., 30% Gf.
  • Contacts: Brass, gold-plated
  • Seal: FPM / EPDM
  • Insulation body: PA 6.6/PBT, UL 94/V0
  • Contact type: Female crimp
671,00 ZAR/Pc.
To the product page

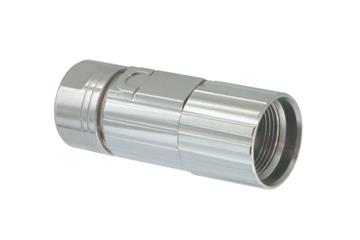

Standard connector, series 617, M17 signal plugs

  • Material: Zinc die-casting/brass, nickel-plated
  • Pollution degree: 3
  • Protection class: IP 66/67 [plugged]
  • Over-voltage category: III
  • Temperature range: -20 °C to +130 °C
  • Union nut/screw: Brass, nickel-plated
  • Clamping ring material: Brass, nickel-plated
  • Contacts: Brass, gold-plated
  • Seal: FPM
  • Insulation body: PBT, UL 94/V0
  • Contact type: Crimp bush, slotted
797,23 ZAR/Pc.
1 items, thereof ready for shipping:
1 in 4 - 7 working days
To the product page

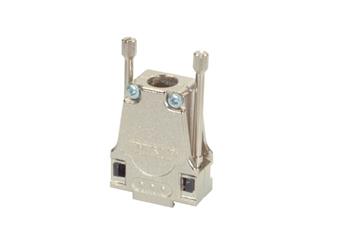

Signal plug-in connector SUB-D straight

  • Design: Standard connector
  • Material: Zinc die-casting, nickel plated
  • Insulation body: Glass fibre reinforced polyester
  • Contacts: Copper alloy, flash gold-plated
  • Max. continuous nominal current: 5 A
  • Testing voltage: (L-L) 1200 V
  • Contact resistance: 1016 Ω/cm
  • Insertion cycles: 50
  • Temperature range: -35 °C to +100 °C
176,55 ZAR/Pc.
4 items, thereof ready for shipping:
4 in 4 - 7 working days
To the product page

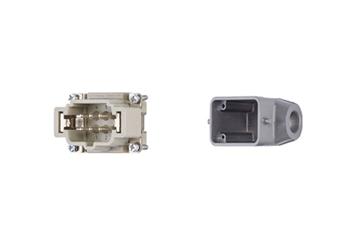

Harting connector set, pin design

  • Han® 6B connector housing, straight cable entry
  • M20 cable entry
538,73 ZAR/Pc.
1 items, thereof ready for shipping:
1 in 4 - 7 working days
To the product page

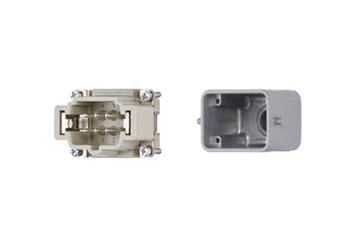

Harting connector set, pin design

  • Han® 6B connector housing, side cable entry
  • M20 cable entry
526,63 ZAR/Pc.
1 items, thereof ready for shipping:
1 in 4 - 7 working days
To the product page

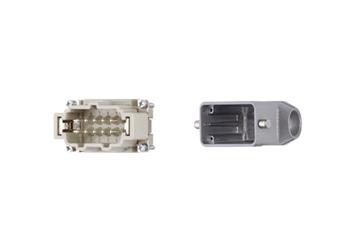

Harting connector set, pin design

  • Han® 10B connector housing, straight cable entry
  • M25 cable entry
801,63 ZAR/Pc.
1 items, thereof ready for shipping:
1 in 4 - 7 working days
To the product page

Harting connector set, pin design

  • Han® 10B connector housing, side cable entry
  • M25 cable entry
759,00 ZAR/Pc.
1 items, thereof ready for shipping:
1 in 4 - 7 working days
To the product page

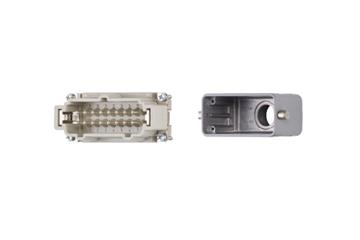

Harting connector set, pin design

  • Han® 16B connector housing, straight cable entry
  • M25 cable entry
832,70 ZAR/Pc.
1 items, thereof ready for shipping:
1 in 4 - 7 working days
To the product page

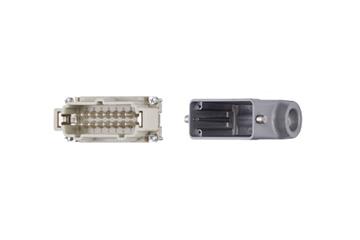

Harting connector set, pin design

  • Han® 16B connector housing, side cable entry
  • M25 cable entry
796,40 ZAR/Pc.
1 items, thereof ready for shipping:
1 in 4 - 7 working days
To the product page

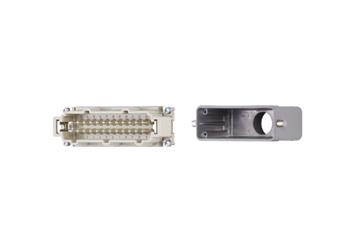

Harting connector set, pin design

  • Han® 24B connector housing, straight cable entry
  • M32 cable entry
1 032,63 ZAR/Pc.
1 items, thereof ready for shipping:
1 in 4 - 7 working days
To the product page

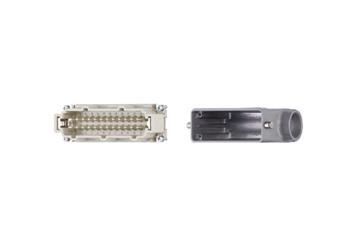

Harting connector set, pin design

  • Han® 24B connector housing, angled cable entry
  • M32 cable entry
1 094,23 ZAR/Pc.
1 items, thereof ready for shipping:
1 in 4 - 7 working days
To the product page

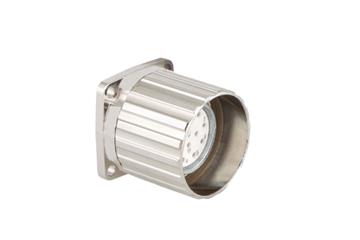

Standard connector, series A, M23 standard feed-through with coupling nut

  • Material: Zinc die-casting/brass, nickel-plated
  • Pollution degree: 3
  • Protection class: IP 66/67 [plugged]
  • Over-voltage category: III
  • Temperature range: -20 °C to +130 °C
  • Union nut/screw: Brass, nickel-plated
  • Clamping ring material: Brass, nickel-plated
  • Contacts: Brass, gold-plated
  • Seal: FPM/HNBR
  • Insulation body: PA 6.6/PBT, UL 94/V0
  • Contact type: Crimp contact bush, slotted
  • Plug design: Bulkhead connector with union nut
362,73 ZAR/Pc.
5 items, thereof ready for shipping:
5 in 4 - 7 working days
To the product page
