Manual accessories for linear module series SLR

Expanding the modular kit

Four SLR accessories shown in a collage.

For more user-friendliness, igus® offers manual accessories for the linear module series SLR. In the product portfolio for accessories you will find suitable angular drives, position indicators, handwheels and manual clamps for the heavy duty spindle axis.

The robust and powerful linear modules in the SLR series are characterised by the dirt-resistant drylin® R round shaft guide. Thanks to their modular design, they enable fast assembly and flexible constructions. With the right accessories, the SLR linear axis can be customised even more quickly and according to your requirements.

Request accessories

Tech up

Matching angular drives, position indicators, handwheels and hand clamps

Cost down

Order the SLR linear module directly including the right accessories: perfectly coordinated

Proof

Based on our existing and already proven accessory products for linear axis.

Sustainability

100% lubrication-free

Winckeltrieb with through shaft for SLR, shown as a compact drive unit with shaft output.

Angular drive:

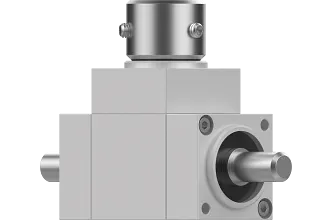

The compact, modular angular drive is infinitely adjustable and is suitable for both manual and electric adjustments. It is optionally available complete with position indicator, spindle clamping and hand wheel and has toothed bevel gears. Electrically, it is available with a suitable assembly kit including drylin® electric motor.

Ergonomic and user-friendly adjustment
Space-saving alignment of operating elements and motors
Shaft output on both sides enables synchronised control of two linear units

Request angular drive

Position indicator:

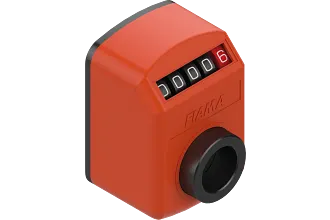

Position indicators allow recurring settings to be adjusted quickly and reliably. Especially on machines where formats/packages can vary, the indicators help to reduce downtimes when changing formats. The position indicator is equipped with a continuous hollow shaft and has a display with five digits (digit height of 5.5 mm).

Housing made of impact-resistant, self-extinguishing plastic, use up to 70 °C
Protection class IP54
Reproducible settings
Simple setting via display
Reading direction freely selectable

Request position indicator

Hand wheel:

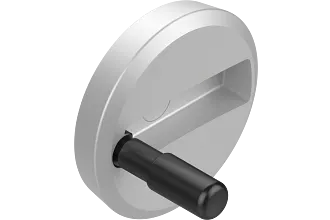

Wherever no electric motor is used for adjustments, a hand wheel can help. The robust hand wheel for the SLR spindle axis series has an extra reversible handle, making it easier to adjust the linear axis to the desired position. The hand wheel is made of silver plastic-coated die-cast aluminium.

Easy adjustment
Fold-away handle saves extra space
Secure fastening via a keyway in accordance with DIN 6885-1
Made from plastic-coated die-cast aluminium

Hand wheel request

Hand clamp for SLR made of black plastic with lever.

Manual clamp:

The use of a manual clamp ensures that the linear slide of your SLR spindle axis is not unintentionally adjusted and therefore saves valuable working time. The manual clamp includes a clamping flange that is suitable for the SLR mounting traverses and a handle for secure clamping of the spindle.
