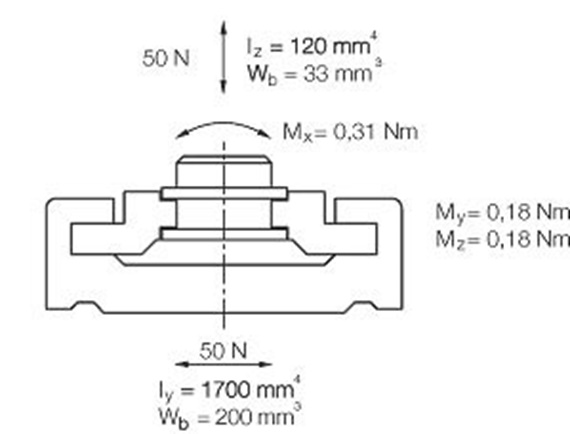

| Order no. | Max. rail lengths | a | C4 | A3 | C5=C6 | h | h1 | K1* | ly | lz | Weight of rail | Price / m | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| [L max.] | Min. | max. | [mm2] | [mm2] | [g/m] | |||||||||
| NS-01-17 | 2000 | 17 | 60 | 0 | 20 | 20/49,5 | 5,5 | 0,9 | M3 | 1700 | 120 | 150 | 558,73 ZAR | |
| NS-01-17-AR | 2000 | 17 | 60 | 0 | 20 | 20/49,5 | 5,5 | 0,9 | M3 | 1700 | 120 | 150 | 642,60 ZAR | |
| NS-01-17-UNGEBOHRT | 2000 | 17 | 60 | 0 | 20 | 5,5 | 0,9 | M3 | 1700 | 120 | 150 | 500,20 ZAR | ||
For unbored rails please indicate "Unbored" in the remark.
* for cylinder screw with low head
| Order no. | Designation | Weight of carriage | ||
|---|---|---|---|---|
| [g] | ||||

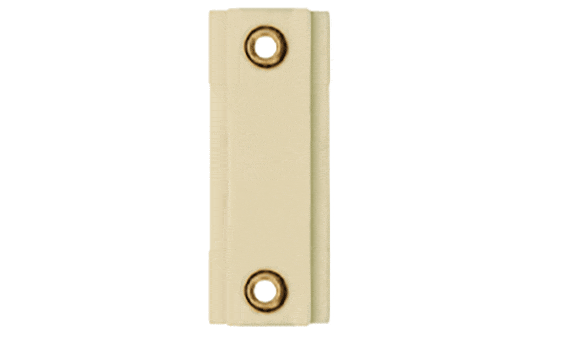

| NW-22-17-40 | Double carriage with threaded pin | 2,6 | 139,69 ZAR | |
| NW-22-17-40-LLY | Double carriage with threaded pin floating bearing y-direction | 2,6 | 139,69 ZAR | |
| NW-22-17-40-LLYZ | Double carriage with threaded pin floating bearing y und z-direction | 2,6 | 139,69 ZAR | |
| NW-22-17-40-LLZ | Double carriage with threaded pin floating bearing z-direction | 2,6 | 139,69 ZAR |
| Part. No. | H | A | C | C1 | C2 | A2 | H2 | K2 | K3 | K4 | Sp min. | Dp Ø min. | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ±0,35 | [g/m] | ||||||||||||
| NW-22-17-40 | 6 | 9,6 | 40 | 40 | 28 | 0 | 0 | M3 | 2,5 | 5 | 2,6 | ||
| NW-22-17-40-LLY | 6 | 9,6 | 40 | 40 | 28 | 0 | 0 | M3 | 2,5 | 5 | 2,6 | ||
| NW-22-17-40-LLYZ | 6 | 9,6 | 40 | 40 | 28 | 0 | 0 | M3 | 2,5 | 5 | 2,6 | ||
| NW-22-17-40-LLZ | 6 | 9,6 | 40 | 40 | 28 | 0 | 0 | M3 | 2,5 | 5 | 2,6 |
no floating bearing
2Floating bearing in z-direction
3Floating bearing in y-direction
4Floating bearing in yz-direction
Enter the required number of carriages.
