Measuring system cables

The chainflex® measuring system cables, as well as resolver cables, feedback cables and encoder cables for energy chains® are cables for medium to high stress. The measuring system cables have various approvals and are available for systems of virtually all renowned manufacturers such as B&R, Baumüller, Heidenhain, Lenze or Siemens. Depending on the type, they are flame-retardant, coolant-resistant and oil-resistant, cold-flexible or twistable. Tested in the igus® laboratory with millions of cycles in e-chains®, they provide guaranteed safety against failure.
  • Bending radii up to 10xd
  • Jacket materials: PVC, iguPUR, PUR or TPE

Products

Filter

Core Requirements
Cable structure
Electrical information
Requirements
Drive technology system

Number of products: 7

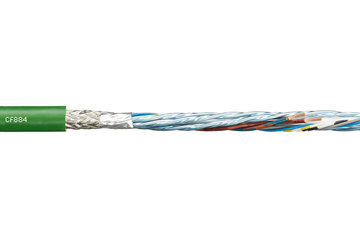

chainflex® measuring system cable CF884
  • Requirements: For flexing applications
  • Outer jacket: PVC
  • Oil resistance: No oil resistance
  • Silicone-free
  • Flame retardant
  • Overall shield
  • chainflex® class: 3.1.1.1

from 1,39 USD / ft

1 of 7 articles ready for shipping in 4 - 7 working days
To the product page

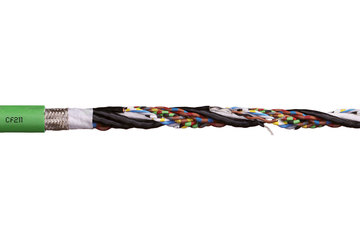

chainflex® measuring system cable CF211
  • Requirements: For medium duty applications
  • Outer jacket: PVC
  • Oil resistance: Oil-resistant according to DIN EN 50363-4-1
  • Silicone-free
  • Flame retardant
  • chainflex® class: 4.2.2.1

from 1,54 USD / ft

20 of 24 articles ready for shipping in 4 - 7 working days
To the product page

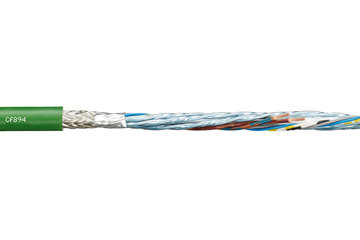

chainflex® measuring system cable CF894
  • Requirements: For flexing applications
  • Outer jacket: iguPUR
  • Oil resistance: Oil-resistant according to DIN EN 50363-10-2
  • Silicone-free
  • Flame retardant
  • chainflex® class: 3.1.3.1

from 1,74 USD / ft

2 of 7 articles ready for shipping in 4 - 7 working days
To the product page

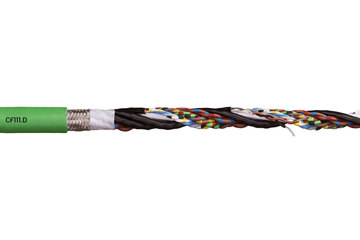

chainflex® measuring system cable CF111.D
  • Requirements: For medium duty applications
  • Outer jacket: PUR
  • Oil resistance: Oil-resistant according to DIN EN 50363-10-2
  • Halogen-free
  • Silicone-free
  • Flame retardant
  • Offshore
  • Coolant resistant
  • Hydrolysis and microbe-resistant
  • Overall shield
  • Notch-resistant
  • PVC-free
  • chainflex® class: 4.2.3.1

from 2,46 USD / ft

18 of 20 articles ready for shipping in 4 - 7 working days
To the product page

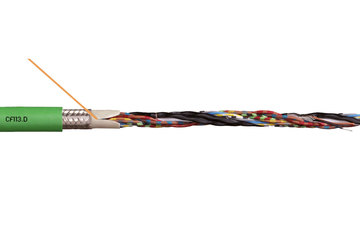

chainflex® measuring system cable CF113.D
  • Requirements: For extremely heavy duty applications
  • Outer jacket: PUR
  • Oil resistance: Oil-resistant according to DIN EN 50363-10-2
  • Halogen-free
  • Silicone-free
  • Flame retardant
  • Offshore
  • Coolant resistant
  • Hydrolysis and microbe-resistant
  • Overall shield
  • Notch-resistant
  • PVC-free
  • CFRIP®
  • chainflex® class: 6.5.3.1

from 2,54 USD / ft

33 of 33 articles ready for shipping in 4 - 7 working days
To the product page

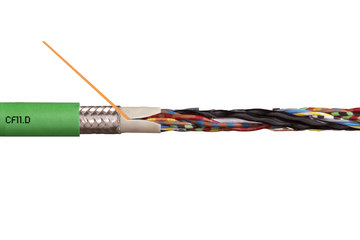

chainflex® measuring system cable CF11.D
  • Requirements: For extremely heavy duty applications
  • Outer jacket: TPE
  • Oil resistance: Oil-resistant according to DIN EN 60811-404, resistant to organc oils according to VDMA 24568 with Plantocut 8 S-MB by DEA
  • Halogen-free
  • Silicone-free
  • Hydrolysis and microbe-resistant
  • PVC-free
  • CFRIP®
  • chainflex® class: 6.6.4.1

from 2,73 USD / ft

31 of 31 articles ready for shipping in 4 - 7 working days
To the product page

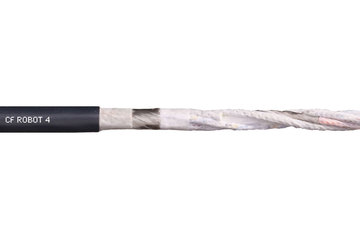

chainflex® measuring system cable CFROBOT4
  • Requirements: For twistable applications
  • Outer jacket: PUR
  • Oil resistance: Oil-resistant according to DIN EN 50363-10-2
  • Halogen-free
  • Silicone-free
  • Flame retardant
  • Coolant resistant
  • Hydrolysis and microbe-resistant
  • Overall shield
  • Notch-resistant
  • PVC-free
  • chainflex® class: 6.1.3.3

from 7,63 USD / ft

5 of 5 articles ready for shipping in 4 - 7 working days
To the product page
