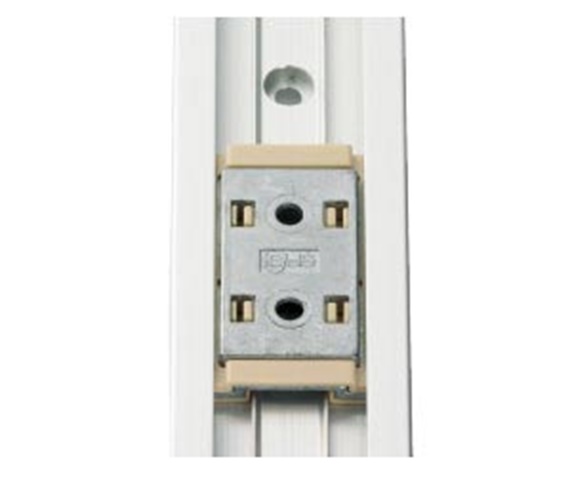

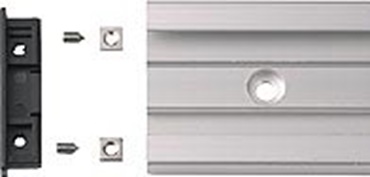

drylin® N - Low profile linear guide system NK-01/02-40

Version 01 with through hole

Version 02 with threaded hole

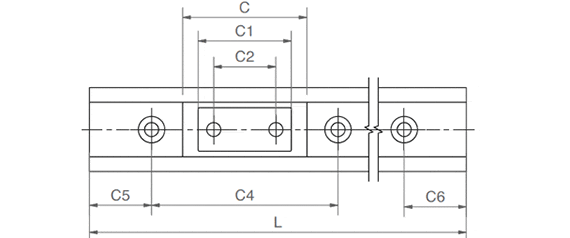

Version 01 with through hole:

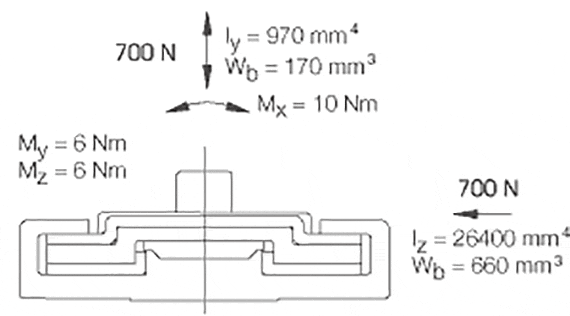

Order no.	Max. rail lengths	a	C4	A3	C5=C6		h	h1	K1*	ly	lz	Weight of rail	Price / m
	[L max.]				Min.	max.				[mm²]	[mm²]	[g/m]
NS-01-40	3000	40	60	0	20	20/49,5	8,7	1,3	M4	26400	970	450	889,08 ZAR
NS-01-40-UNGEBOHRT	3000	40	0	0	0		8,7	1,3		26400	970	450	795,84 ZAR
NS-01-40-AR	3000	40	60	0	20	20/49,5	8,7	1,3	M4	26400	970	450	1 022,45 ZAR

More about selected part:

3D-CAD

Sample request

PDF

Quote request

myCatalog

For unbored rails please indicate "Unbored" in the remark.
* for cylinder screw with low head

Version 02 with threaded hole:

Order no.	Weight of carriage
	[g]
NW-02-40	30	182,70 ZAR
NW-02-40-LLY	30	182,51 ZAR
NW-02-40-LLZ	30	182,51 ZAR
NW-02-40-LLYZ	30	182,51 ZAR

More about selected part:

3D-CAD

Sample request

PDF

Quote request

myCatalog

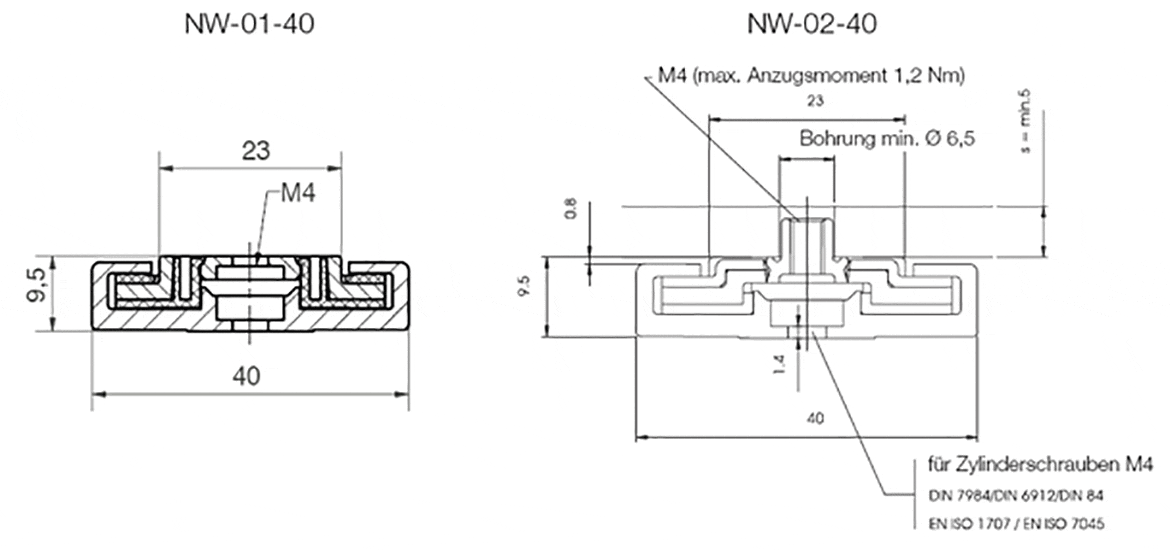

Version 02: Dimensions [mm] - guide carriages

Part. No.	H	A	C	C1	C2	A2	H2	K4	Spmin.	DpØmin.	Weight
	±0,35										[g/m]
NW-02-40	9,5	23	50	40	20	0	0	M4	5	6,5	30
NW-02-40-LLY	9,5	23	50	40	20	0	0	M4	5	6,5	30
NW-02-40-LLZ	9,5	23	50	40	20	0	0	M4	5	6,5	30
NW-02-40-LLYZ	9,5	23	50	40	20	0	0	M4	5	6,5	30

More about selected part:

3D-CAD

Sample request

PDF

Quote request

myCatalog

Version 01 with through hole:

Order no.	Weight of carriage
	[g]
NW-01-40	30	182,70 ZAR
NW-01-40-LLY	30	182,51 ZAR
NW-01-40-LLZ	30	182,51 ZAR
NW-01-40-LLYZ	30	182,51 ZAR

More about selected part:

3D-CAD

Sample request

PDF

Quote request

myCatalog

Version 01: Dimensions [mm] - guide carriages

Part. No.	H	A	C	C1	C2	A2	H2	Spmin.	DpØmin.	Weight
	±0,35									[g/m]
NW-01-40	9,5	23	50	40	20	0	1,3	0	0	30
NW-01-40-LLY	9,5	23	50	40	20	0	1,3	0	0	30
NW-01-40-LLZ	9,5	23	50	40	20	0	1,3	0	0	30
NW-01-40-LLYZ	9,5	23	50	40	20	0	1,3	0	0	30

More about selected part:

3D-CAD

Sample request

PDF

Quote request

myCatalog

Ordering of a complete system

Configuration in few steps:

1. Selection of the number of carriages
2. Selection of the type of carriagel
3. Entry of the rail length in mm
4. Selection of the carriage options
5.

Hint:

Detailed information can be found in the drawings and tables above, as well as in the below-mentioned pages. You can obtain precise specifications on the floating bearing options within the design rules.

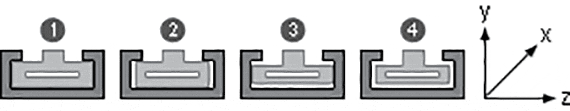

1

no floating bearing

2

Floating bearing in z-direction

3

Floating bearing in y-direction

4

Floating bearing in yz-direction
