The global growth in automation for industrial production is leading to increasingly complex applications,
particularly when using industrial robots. Even with greater integration
and new production processes, target cycle times have to be kept as short as possible
and downtime reduced as much as possible. To provide reliable protection against premature system failure and
downtime, we recommend the use of a triflex® R e-chain®, especially to bridge
axes 3-6. The dynamic change in length that results from the robot's
movement is compensated by the triflex® R retraction systems. Constantly
guiding the igus® e-chain® package in a defined manner to prevent the formation of
loops in the robot's working area.

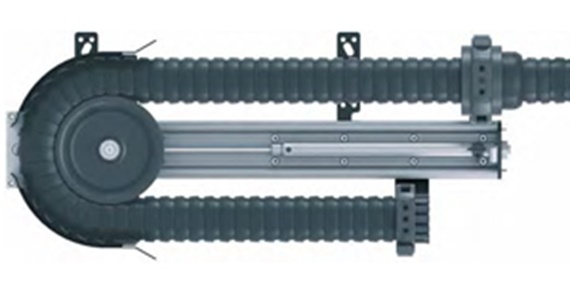

| For Series TRC·TRE·TRCF with a ø-index of 60-125 mm
For robots with a load capacity from approx. 50 kg
Up to 780 mm retraction is possible
For applications with a high fill weight
Almost constant retraction force over the complete travel
Standard pneumatic components

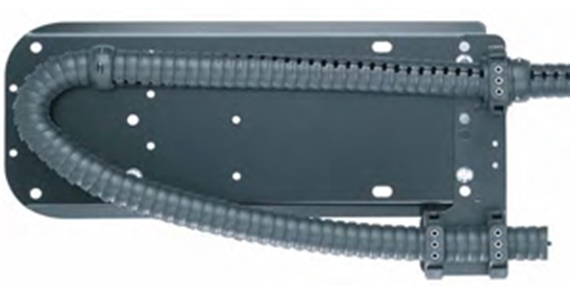

For Series TRC·TRE with a ø-index of 40-100 mm
For robots with a load capacity from approx. 10 kg
Up to 670 mm retraction is possible
If no linear guide system is desired
With major environmental influences
Retraction force using integrated fibre rods

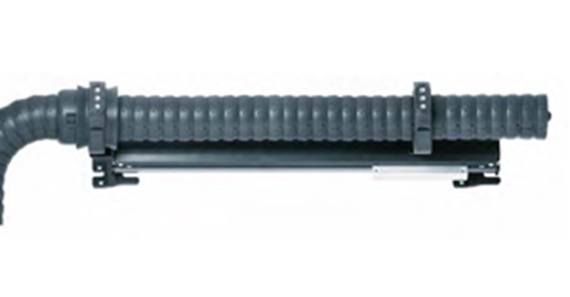

For the TRC·TRE·TRCF* series with 40-125mm ø-index
Special linear guide avoids tight bend radii
Up to 490mm retraction length possible
Simple, linear retraction without sags, fibre-rods, or guide rollers
Cost-effective
Maintenance-free igus® drylin® W linear unit

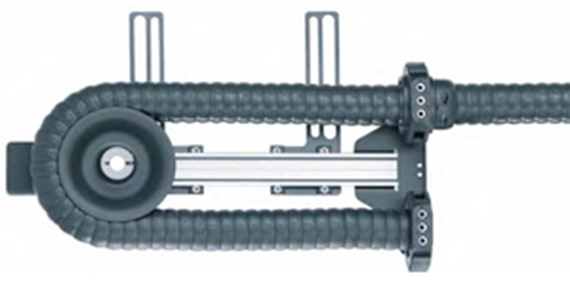

For Series TRC·TRE with a ø-index of 40 mm
For small robots, very light
Up to 500 mm retraction is possible
For highly dynamic movements
Low-cost
Maintenance-free igus® drylin® W linear unit
43 brackets from stock for many robot types
For all triflex® RSP , RS and RSE modules
3D CAD data available online for download
Also for robots with lateral mounting positions

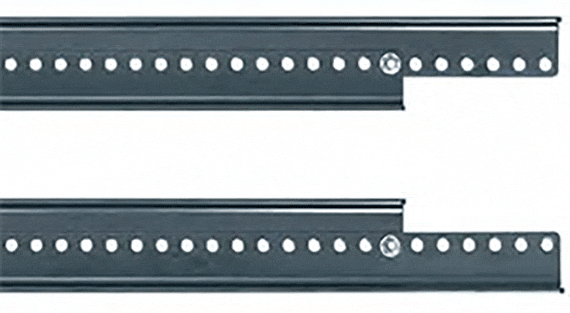

Broad adjustment range of ± 250 mm
Can be combined with igus® adapter consoles
Simplifies alignment even in restricted robot cells
X= Total length of the e-chain®
Y= Size of the robot
| triflex® R Series |
RSP ø Index |
RS Ø Index |
RSE linear Ø-Index |
RSE Ø-Index |
|---|---|---|---|---|
| TRC | 60 - 125 | 40 - 100 | 40 - 125 | 40 |
| TRE | 60 - 125 | 40 - 100 | 40 - 125 | 40 |
| TRCF | 85 - 100 | - | 85 - 100 | - |
| TRL* | - | - | - | - |
| TRLF* | - | - | - | - |
Custom solutions with directed pretension.
Allows the fibre rod modules to be positioned anywhere on the robot arm.
Secure cable starin relief even for cables with a large cross section.
With and without swivel bearing
Extra safety under extreme operating conditions.
Protects from chips and metal spatter up to 600°C
triflex® R mounting brackets for universal robots

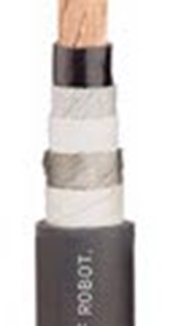

Special cables for a long service life in robot applications.
