drylin Cartesian robot

The robolink® modular robotic system allows you to automate manual work steps quickly and easily. Articulated arms in various lengths and sizes are available. The number of lubrication-free joints used ranges from two to six, and the robot can be equipped with various tools (e.g., grippers, suction cup, camera, etc.) as desired. robolink® robot components are characterised by their modularity. As a modular system, a robot arm can be configured as desired and therefore economically, and moreover it is also possible to obtain ready-to-use complete systems.


Due to order peaks, the delivery time for single items is 10-15 working days longer than stated. Please refer to our order confirmation for the specific delivery date. For urgent, short-term requirements, please contact us personally so that we can realise the delivery time necessary for you. You will find your contact person at the top of the menu under "My contact person", next to the language/country selection, or on this page.

Number of products: 14

drylin E room linear robot | Workspace 500 x 500 x 100mm

Product information
  • Workspace 500 x 500 x 100mm
  • Payload up to 2.5kg
  • Speed up to 0.5m/s
  • Repeat accuracy: ±0.8mm

Optionally available
2 976,95 USD/Pc.
1 items, thereof ready for shipping:
1 in 4 - 7 working days
To the product page

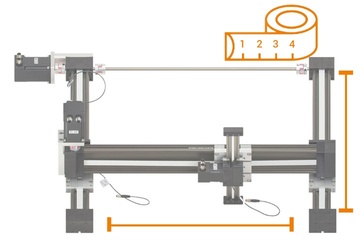

Individual drylin® linear robot with any stroke length

You can request an individual drylin® E linear robot created according to your application parameters here.

drylin E room linear robot "XXL" | Workspace 2000 x 2000 x 1000 mm

Product information
  • Workspace 2000 x 2000 x 1000 mm
  • Payload up to 10kg
  • Repeatability ±0.8mm
  • Speeds up to 500mm/s

Optionally available
New

drylin E room linear robot | workspace 800 x 800 x 500mm | incl. Control systems

Product information
  • Workspace 800 x 800 x 500mm
  • Payload up to 5kg
  • Speed: up to 1m/s
  • Repeatability ±0.5mm
  • including igus Robot Control system with 7 digital inputs and outputs

Optionally available

drylin E room linear robot | Workspace 500 x 500 x 200mm

Product information
  • Workspace 500 x 500 x 200mm
  • Payload up to 10kg
  • Repeatability ±0.5mm
  • X & Y-axis speed up to 1m/s
  • Z axis (lead screw axis) speed max. 20mm/s
Optionally available

drylin E flat linear robot | Workspace 650 x 650mm

Product information
  • Workspace 650 x 650mm
  • Payload up to 10kg
  • Repeatability ±0.5mm
  • Speed: up to 1m/s
  • with proximity switches and connecting cables

Optionally available
New

drylin E line robot | Workspace 500 x 150mm

Product information
  • Workspace 500 x 150mm
  • Payload up to 3kg
  • Speed: up to 1m/s
  • Repeatability ±0.5mm

Optionally available

drylin E room linear robot | Workspace 400 x 400 x 150mm

Product information
  • Workspace 400 x 400 x 150mm
  • Payload up to 2.5kg
  • Repeatability ±0.8mm
  • Speed up to 0.5m/s

Optionally available
2 261,95 USD/Pc.
1 items, thereof ready for shipping:
1 in 4 - 7 working days
To the product page

drylin E room linear robot | Workspace 800 x 800 x 500mm

Product information
  • Workspace 800 x 800 x 500mm
  • Payload up to 5.0kg
  • Repeatability ±1.0mm
  • Speed up to 0.5m/s

Optionally available
4 776,71 USD/Pc.
1 items, thereof ready for shipping:
1 in 4 - 7 working days
To the product page

drylin E line robot | Workspace 500 x 144 mm

Product information
  • Workspace 500 x 144mm
  • Payload up to 2.5kg
  • Speeds up to 500mm/s
  • Repeatability ±0.2mm

Optionally available
1 562,44 USD/Pc.
1 items, thereof ready for shipping:
1 in 4 - 7 working days
To the product page

drylin E line robot | Workspace 800 x 500mm

Product information
  • Workspace 800 x 500mm
  • Payload up to 5kg
  • Speed: up to 1m/s
  • Repeatability ±0.3mm

Optionally available
2 714,34 USD/Pc.
1 items, thereof ready for shipping:
1 in 4 - 7 working days
To the product page

drylin E flat linear robot | Workspace 300 x 300mm | Motors with stranded wire connection

Product information
  • Workspace 300 x 300mm
  • Payload up to 8.0kg
  • Speed up to 1.5m/s
  • Repeatability ±0.5mm
  • Low cost without encoder

Optionally available
1 557,79 USD/Pc.
1 items, thereof ready for shipping:
1 in 4 - 7 working days
To the product page

drylin E flat linear robot | Workspace 500 x 500mm

Product information
  • Workspace 500 x 500mm
  • Payload up to 8.0kg
  • Repeatability ±0.5mm
  • Speed up to 1.5m/s

Optionally available
1 150,33 USD/Pc.
1 items, thereof ready for shipping:
1 in 4 - 7 working days
To the product page

drylin E flat linear robot | Workspace 300 x 300mm | Motors incl. Encoder

Product information
  • Workspace 300 x 300mm
  • Payload up to 8,0kg
  • Speed: up to 1,5m/s
  • Repeatability ±0.5mm

Optionally available
2 084,60 USD/Pc.
1 items, thereof ready for shipping:
1 in 4 - 7 working days
To the product page
